HBQ-G401B Torque Workstation(The 3rd generation)

产品特点： ● Intelligent error-proofing 1.Startup and inspection：Ensure that the output torque value of the electric screwdriver is in a high-precision state. 2.Locking alarm: If the tightening value is not reached, the equipment will alarm and self-lock. 3.Position alarm: The encoder controls the screw-tightening coordinates, and screws can only be tightened at the corresponding coordinates. 4.Code scanning recognition: Use a barcode scanner to quickly identify products and bind torque values. 5.Visual inspection: Use an industrial camera to take pictures of products, which can recognize functions such as text/letters, shapes, colors, and black-and-white. 6.Laser guidance: Use laser infrared to guide the processing position of coordinates (optional). 7.Rework function: Intelligent rework can be achieved based on the results of visual inspection. 8.Record storage: The whole-machine records are communicated and stored with the MES system. ● Convenient operation 1.It can be equipped with a canvas bag, which is convenient for storing large and multiple wire harnesses. 2.Visualized software management enables quick identification of problem causes. ● Operational safety It has an independent start button. The program is designed to prevent mistakes. It can only be started after the product is placed to prevent misoperation.

产品资料：产品视频、说明书、图片

视频

下载

产品概述产品特性技术参数相关产品

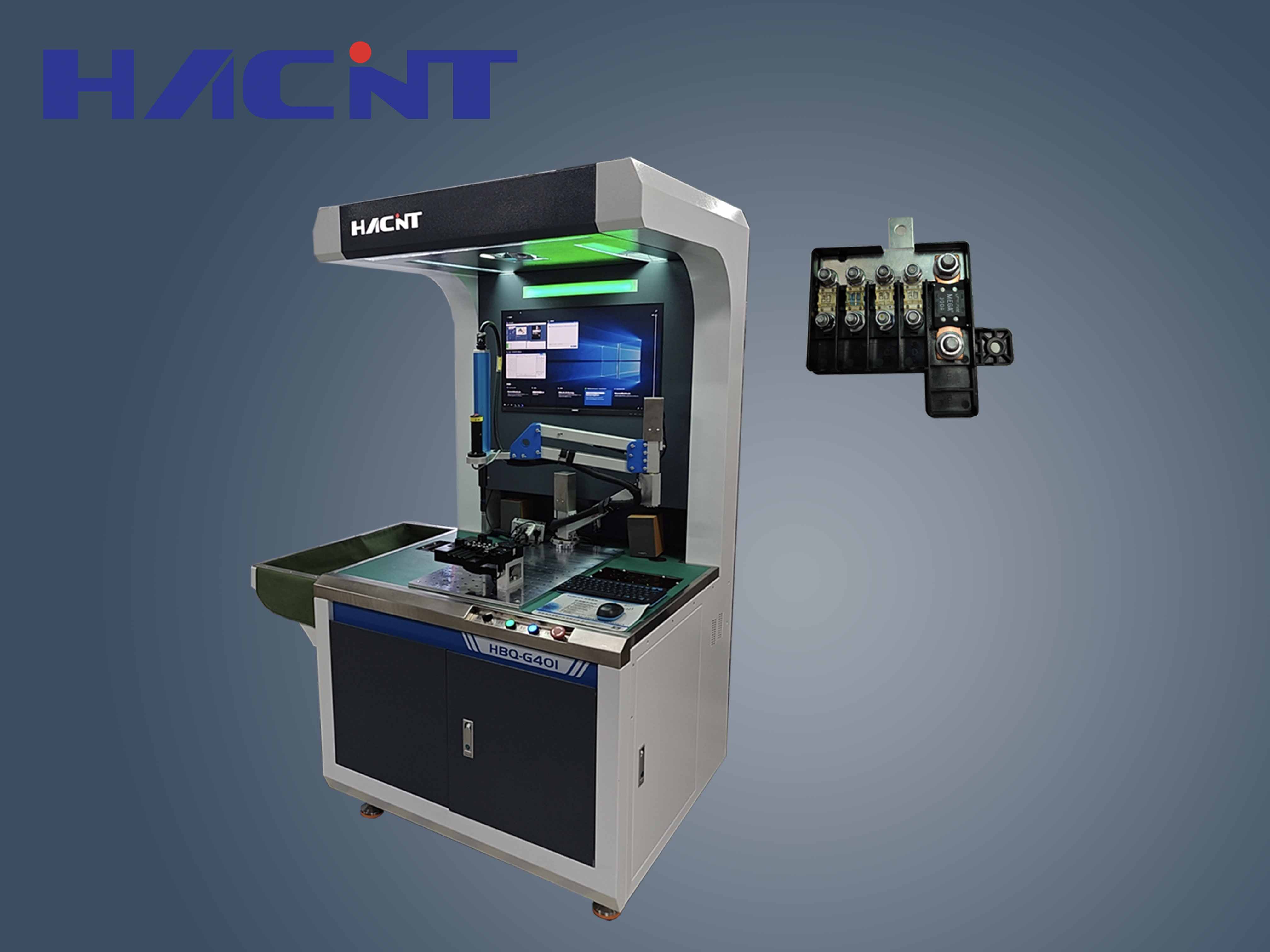

HBQ-G401B is a semi-automatic screw driving + visual inspection machine (the third generation), mainly used for tightening the nuts of automotive fuse boxes or charging guns of new energy vehicles. The torque values of nut tightening can be uploaded to the MES system in real time for traceability. The machine has functions such as error prevention for tightening multiple screws, error prevention for the screw tightening sequence, custom setting of the tightening torque for multiple screws, custom visual recipes, torque inspection during startup, product reading by scanning the code, high/low torque alarm for the electric screwdriver during tightening, intelligent rework (which can be bound according to the fuse and the nut), and the production log can be queried. The core part, the intelligent electric screwdriver, uses CORETEC imported from Japan (which can be customized according to customer requirements). The application software of the upper computer is independently developed by Haichang Intelligence, which can meet the customized needs of customers.

● Intelligent error-proofing

1.Startup and inspection：Ensure that the output torque value of the electric screwdriver is in a high-precision state.

2.Locking alarm: If the tightening value is not reached, the equipment will alarm and self-lock.

3.Position alarm: The encoder controls the screw-tightening coordinates, and screws can only be tightened at the corresponding coordinates.

4.Code scanning recognition: Use a barcode scanner to quickly identify products and bind torque values.

5.Visual inspection: Use an industrial camera to take pictures of products, which can recognize functions such as text/letters, shapes, colors, and black-and-white.

6.Laser guidance: Use laser infrared to guide the processing position of coordinates (optional).

7.Rework function: Intelligent rework can be achieved based on the results of visual inspection.

8.Record storage: The whole-machine records are communicated and stored with the MES system.

● Convenient operation

1.It can be equipped with a canvas bag, which is convenient for storing large and multiple wire harnesses.

2.Visualized software management enables quick identification of problem causes.

● Operational safety

It has an independent start button. The program is designed to prevent mistakes. It can only be started after the product is placed to prevent misoperation.

Type	HBQ-G401B
Torque Range	5-22N·m
Torque Accuracy	±5％
Electric Batch Speed	540rpm/min
Interface Type	USB,RS232
Power	1500W
Power Supply	220v/50Hz
Air Supply	0.5Mpa-0.7Mpa
Weight	400Kg
Overall Dimensions	L1010xW910xH1956,worktable height≈840mm
