Crimping Machine
HBQ-P12 CRIMPING MACHINE
产品特点： ●Stable and Durable: new mechanism design, crimping is stable, crimp force is stable at different shut heights; ●Strong Versatility: can adapt to a variety of applicators; ●Accurate Adjustment: independent motor adjusts the crimping height and automatically compensates the height; ●Simple Operation: touch screen control, setting parameters, point operation, convenient and fast to adjust the processing articles; ●Mutli Functions: can connect to MES;
产品资料：产品视频、说明书、图片

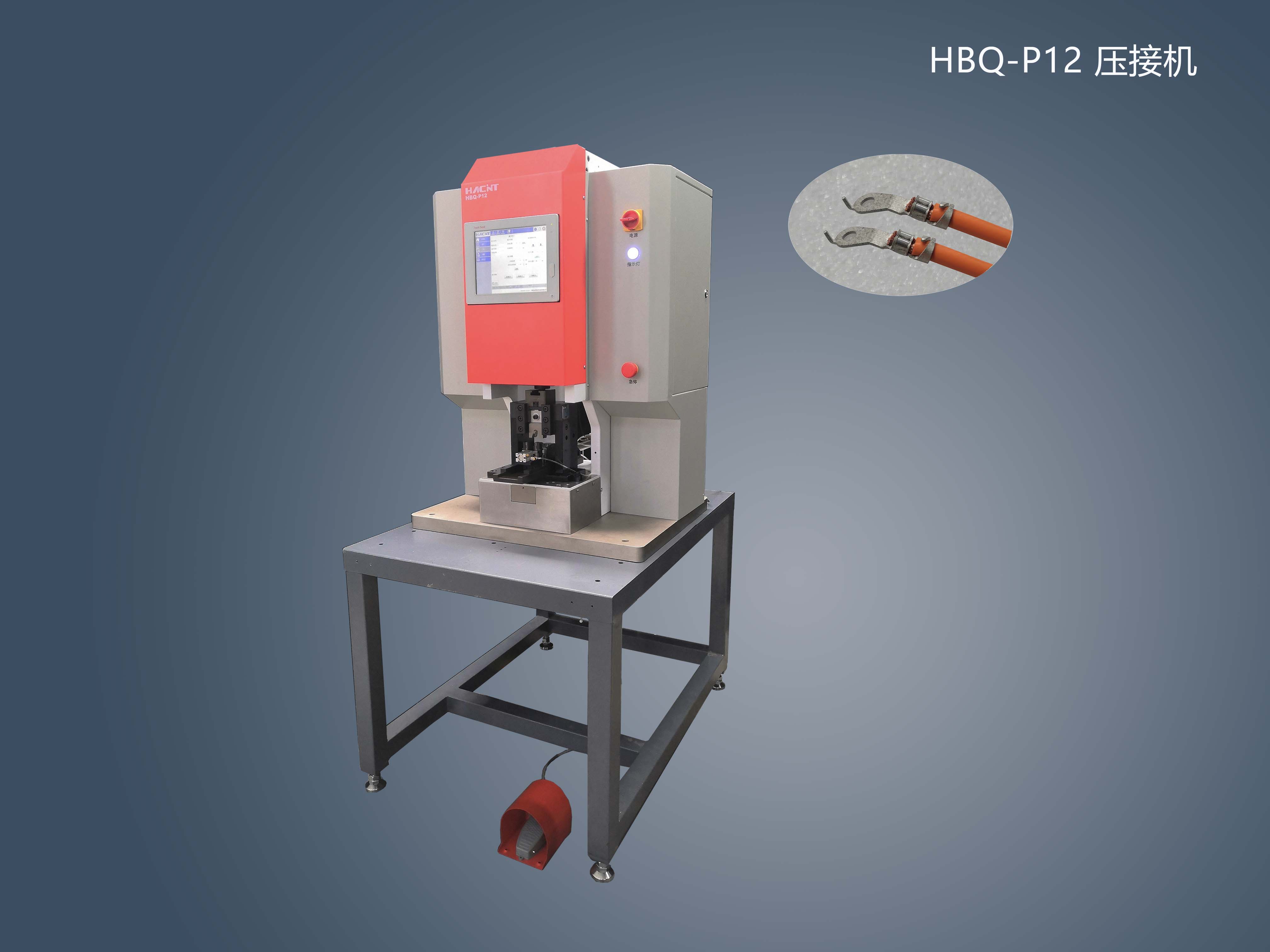

HBQ-P12 crimping machine is a new semi-automatic
crimping equipment. It is equipped with touch screen which can automatically
adjust the shut height and move the wheel to make the applicator adjustment
more convenient.
●Stable and Durable: new mechanism design, crimping is stable, crimp force is stable at different shut heights;
●Strong Versatility: can adapt to a
variety of applicators;
●Accurate Adjustment: independent motor adjusts the crimping height and automatically compensates the height;
●Simple Operation:
touch screen control, setting parameters, point operation, convenient and fast
to adjust the processing articles;
●Mutli Functions: can connect to MES;
|
Item |
Specification |
|
Type |
HBQ-P12 |
|
Power Supply |
380V/50Hz |
|
Power |
1.5Kw |
|
Crimp Force |
120KN |
|
Stoke |
40mm |
|
Wire Cross Section |
16-35mm² |
|
Weight |
600Kg |
|
Dimension |
W800xD888xH1700 |
HBQ-2030J/4030J/8030J Crimping Machine
● Precise: Crimping height can be adjusted continuously ,with tolearance accurately to 0.03mm; ● Quick : Match to all kinds of applicators , quick and convenient change; ● Stable: Simple structure, stable & reliable operation; ● Economical : Do work at crimp instant only and save energy; ● Quiet : Low noise, suitable for home basis production; ● Safe : Special over-load protection, operate in safety. 查看详情
HBQ-2030E/4040E//8040E Crimping Machine
● Precise: Crimping height can be adjusted continuously ,with tolearance accurately to 0.03mm; ● Quick : Match to all kinds of applicators , quick and convenient change; ● Stable: Simple structure, stable & reliable operation; ● Economical : Do work at crimp instant only and save energy; ● Quiet : Low noise, suitable for home basis production; ● Safe : Special over-load protection, operate in safety. 查看详情
HBQ-P20/P30 Crimping Machine
HBQ-P20/P30 is a heavy-duty crimping machine capable of crimping large cross-section wires. The safety of operators is ensured at all times through safety devices such as safety gratings and two - hand buttons. Functions such as jogging the chucking and reverse rotation make applicators adjustment more convenient. It is an ideal substitute for traditional punching machines. In addition, there are various heavy - duty applicators available for supporting use. 查看详情
HBQ-160 Multi-functional Servo Crimping Machine
HBQ-160 crimping machine is a newly developed servo crimping machine. The crimping height and crimping speed are adjustable to meet different process requirements. 查看详情
HBQ-160H Multi-functional Servo Crimping Machine
HBQ-160H multi-function crimping machine is a new generation of servo crimping machine developed by Haichang Company, which can realize automatic adjustment of crimping height and free setting of crimping speed to meet more crimping process requirements. 查看详情
HBQ-JSI/ESI NETWORK CRIMPING MACHINE
HBQ-X4030JSI/X4040ESI/8030JSI/8040ESI is the new generation press, which could network with MES and adjust the crimping height automatically. Nowadays, the operators have to adjust the crimping height to make the press work correctly, when a new applicator is changed. But this pr 查看详情
